ADSBee 1090

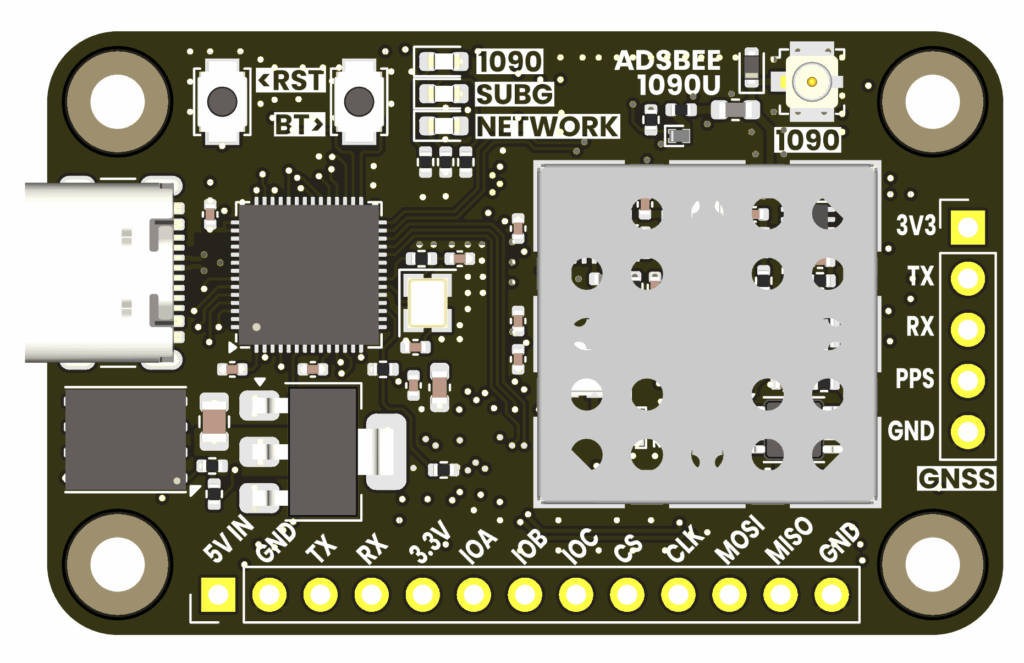

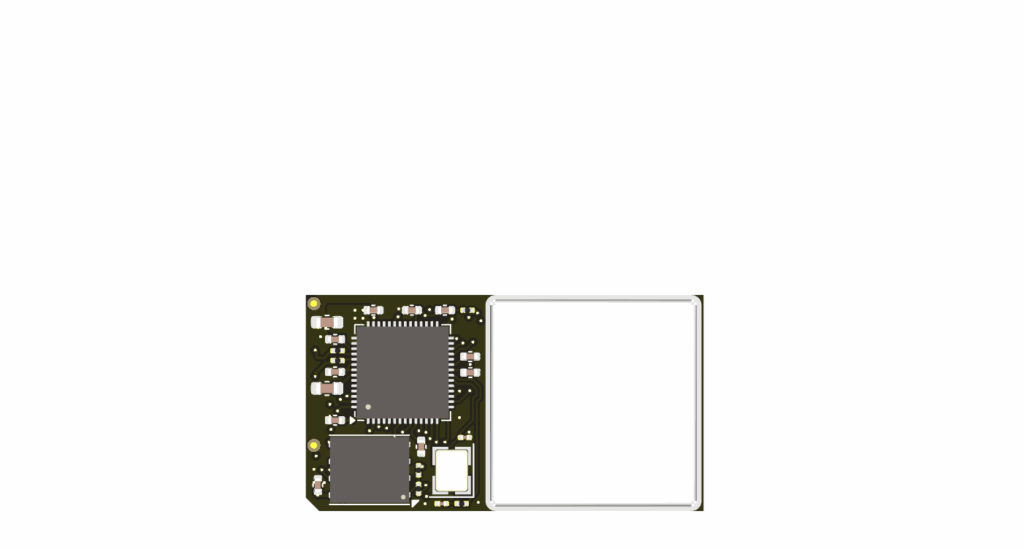

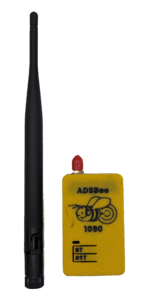

ADSBee 1090 is an open source embedded ADS-B receiver that decodes 1090MHz aircraft transponder transmissions, including ADS-B (Automatic Dependent Surveillance Broadcast) and Mode S.

Join the Project:

Features

  • 1090MHz Automatic Dependend Surveillance Broadcast (ADS-B) and Mode S packet decoding: receives and decodes transponder packets containing location / altitude / heading / callsign / aircraft type / squawk code / etc from any aircraft equipped with a 1090MHz transponder.
  • Multiple data output formats over UART and USB.
    • CSBee (Plain text CSV formatted output of aircraft stats and locations)
    • CSBee Raw (Plain text CSV formatted output of raw decoded packets)
    • MAVLINK1 / MAVLINK2
    • GDL90 (in progress)
    • More?
  • EEPROM for storing configuration parameters in non-volatile memory.
  • GNSS module connector for PPS and device location (used to support packet decoding and provide MLAT timestamps).
  • 2.4GHz WiFi with MHF3 external antenna connector.
  • Easy firmware updates over USB.
  • Exposed testpoints with raw RF signal amplitude, conditioned / thresholded logic value, recovered clock waveform, and decode interval (for the adventurous or curious types).
  • Low power operation (5V 75mA w/o WiFi, 5V 400mA w/ WiFi). Enables operation from a solar panel or similar energy harvesting device.
  • Low cost (sub $100 target MSRP). No FPGA on board, no external compute required!

Applications

  • Feeder station for online ADSB aggregators (e.g. airplanes.live).
  • Aircraft detection and tracking for robotics and embedded projects.

Open Source Hardware + Software

All hardware design files and source code files required to build ADSBee 1090 are available under a GNU GPL v3 license. This means that they can be freely incorporated into other open-source projects that utilize a compatible license. The hope is that by opening the design to contributions and feedback from a community of users, the functionality of the ADSBee 1090 will be enhanced over time.Note that the GPL v3 license applies to design and source code files, and not devices. ADSBee 1090 units purchased from Pants for Birds may be used in commercial applications without any licensing restrictions.

For commercial licensing requests of ADSBee hardware or software design elements, please contact john@pantsforbirds.com.

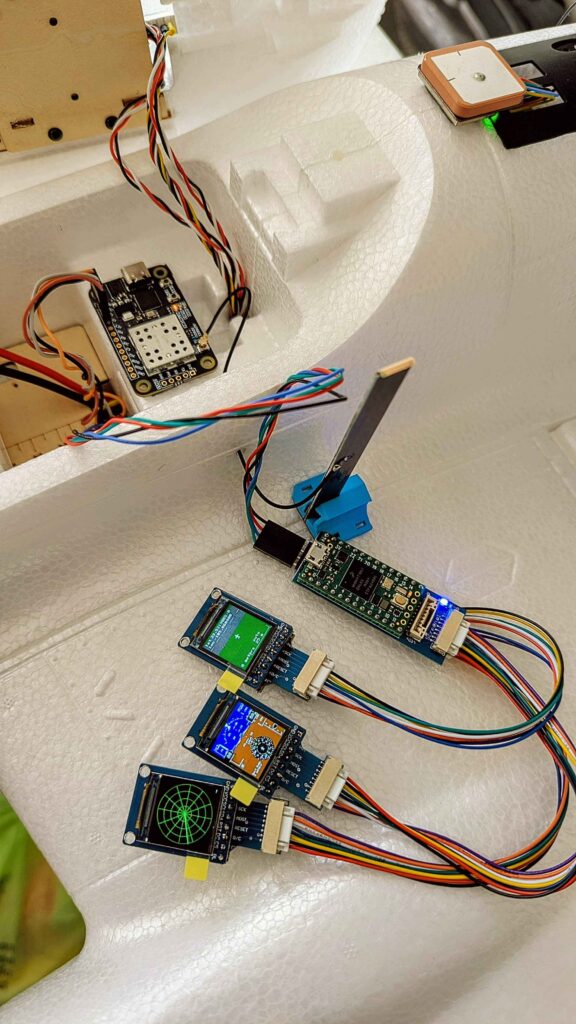

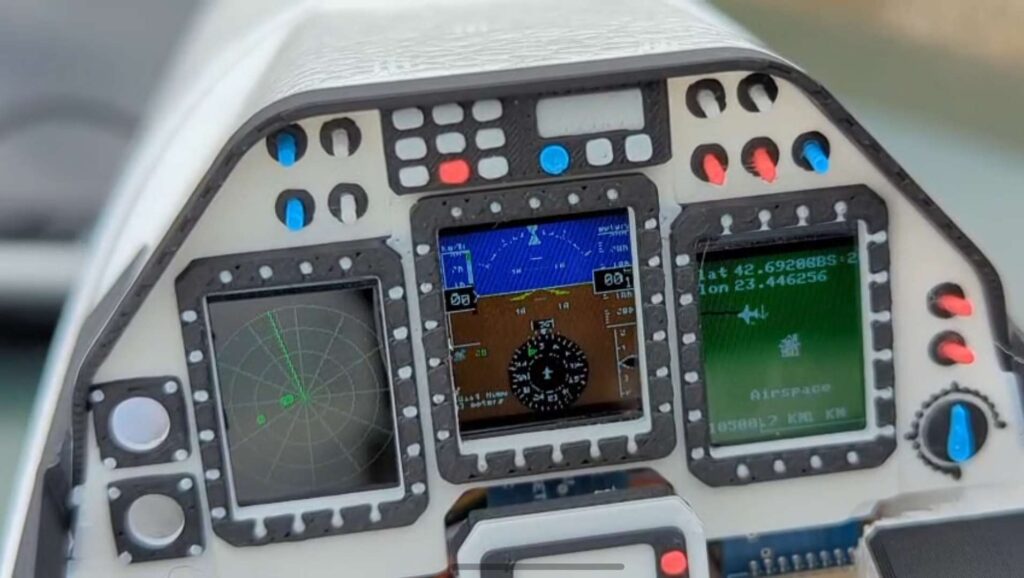

Project Gallery

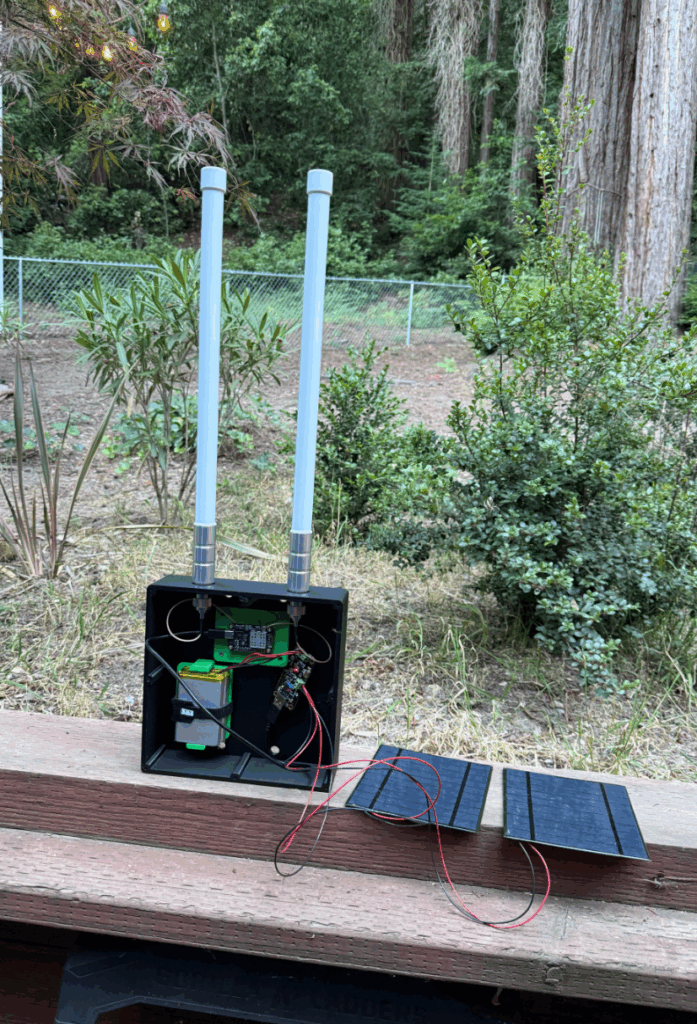

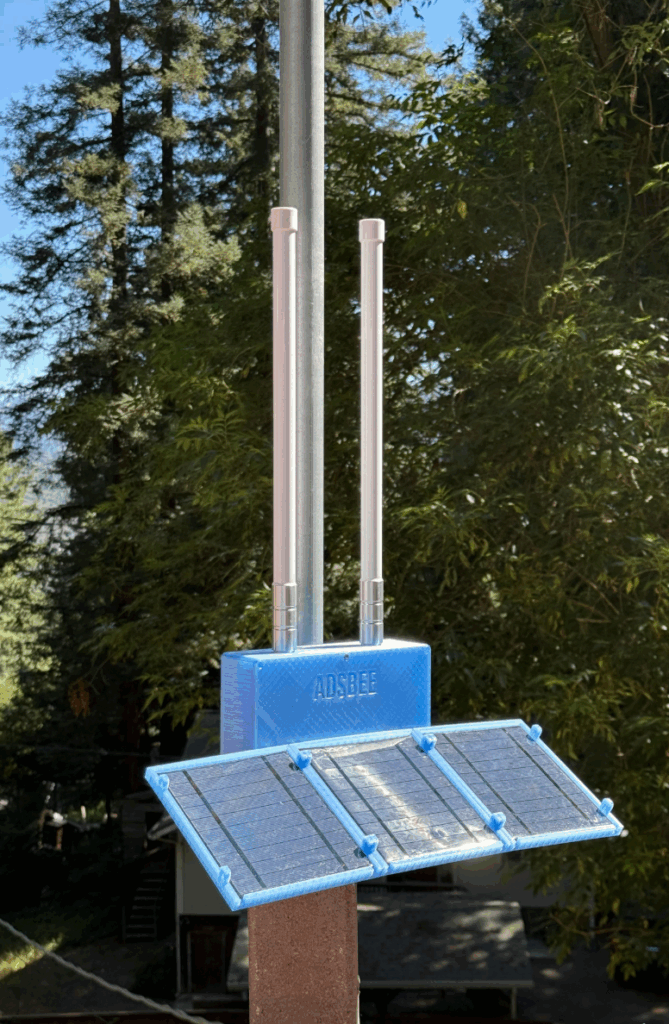

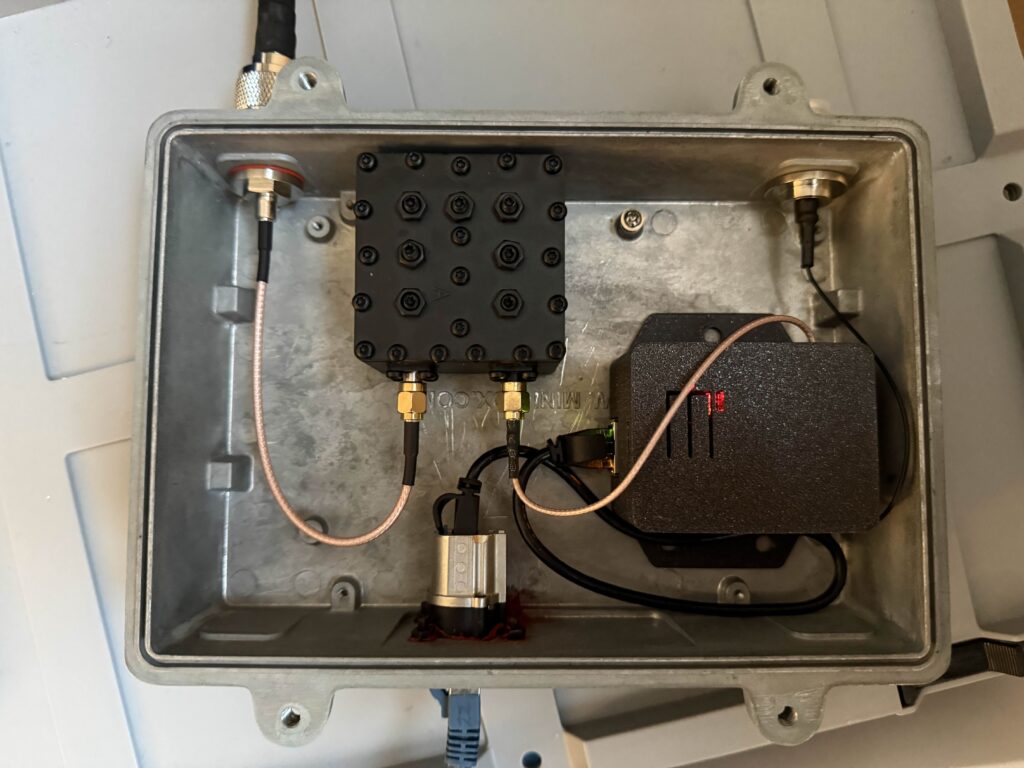

Solar powered ADS-B feeder station

Live aircraft LED display

Project credit: Steve Mo

LED panels being run off an STM32, fed with MAVLINK1 by the ADSBee 1090.

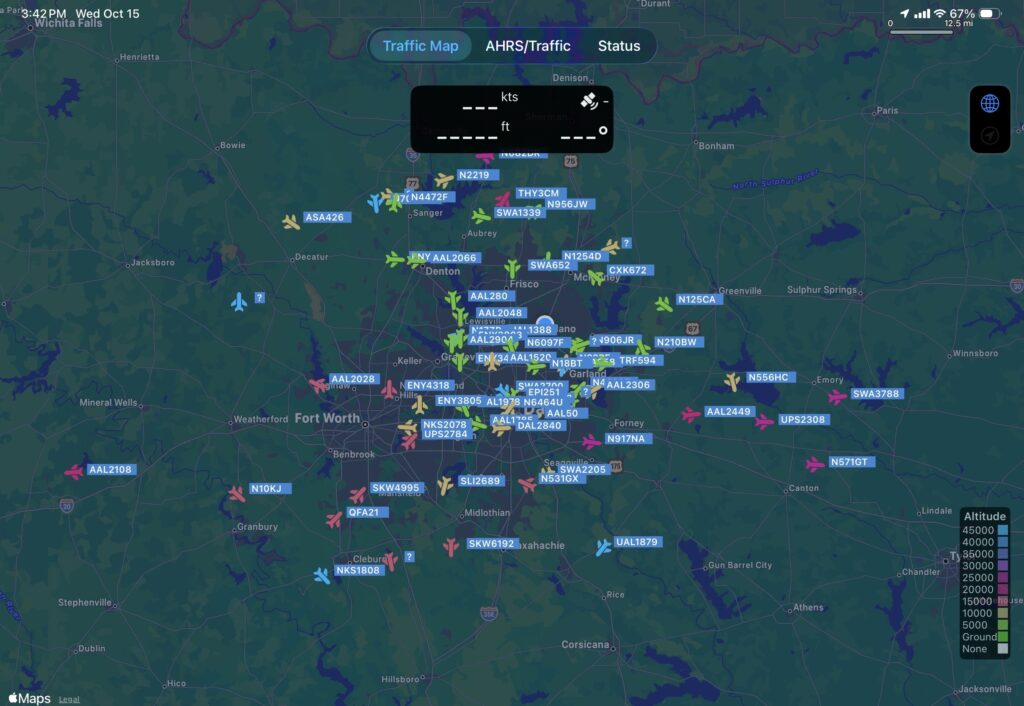

Real-time Aircraft Map

Project Credit: Caitlin Hogan

Aircraft data ingested over MAVLINK2 from the ADSBee 1090 and stored in influx DB. Real-time map is rendered with Hyphen, a customizable open source database dashboarding software that is currently in development.
