ADSBee GS3M PoE [Preorder]

Description

This product is available for preorder. Units will ship in early November 2025.

ADSBee GS3M PoE is a dual band industrial ground station with 1090MHz Mode S / ADS-B and 978MHz UAT Reception. All receiver electronics are fully contained within a custom die-cast aluminum enclosure that enables all-weather operation in IP65 conditions with temperatures ranging from -20°C to +85°C.

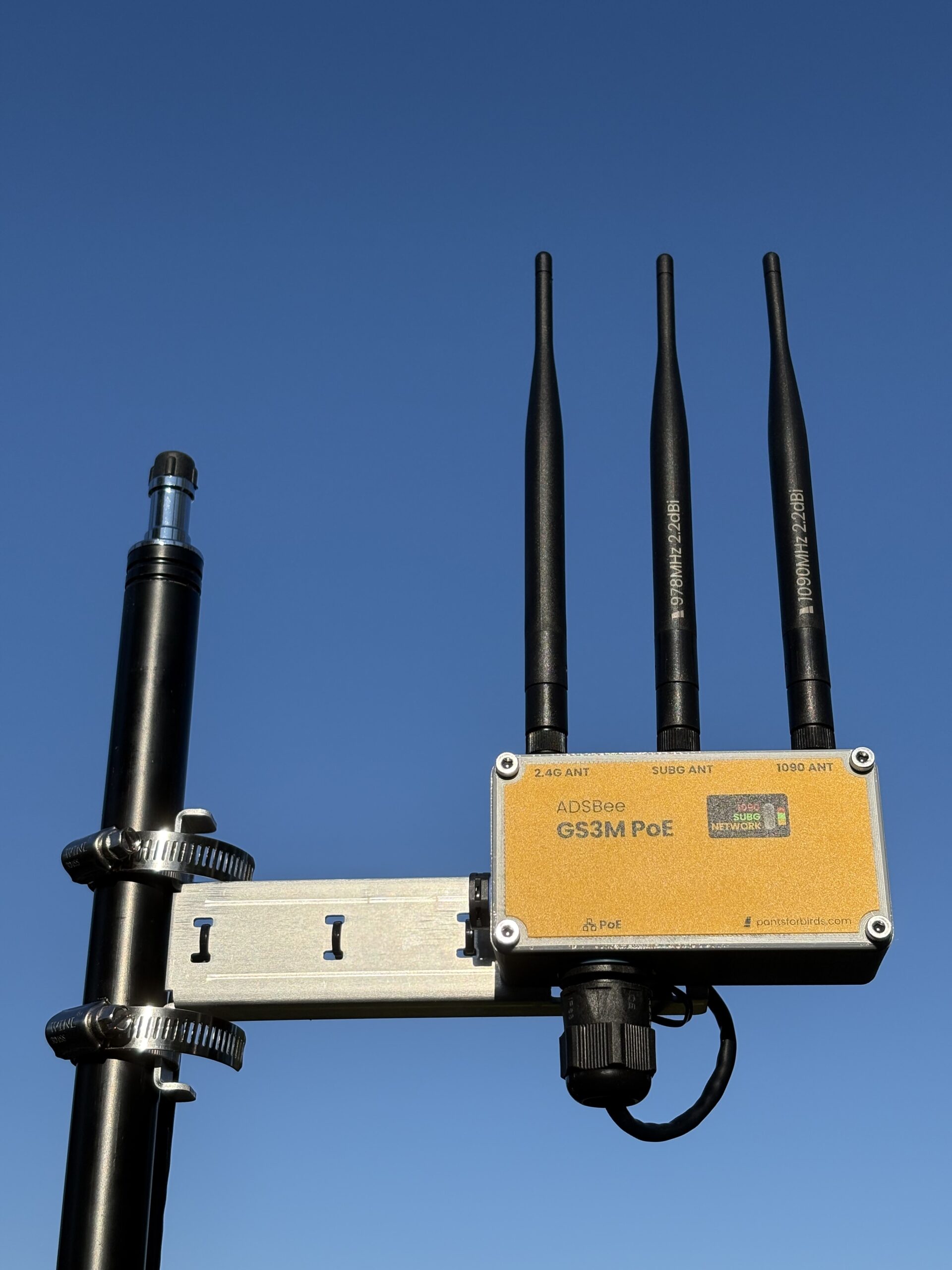

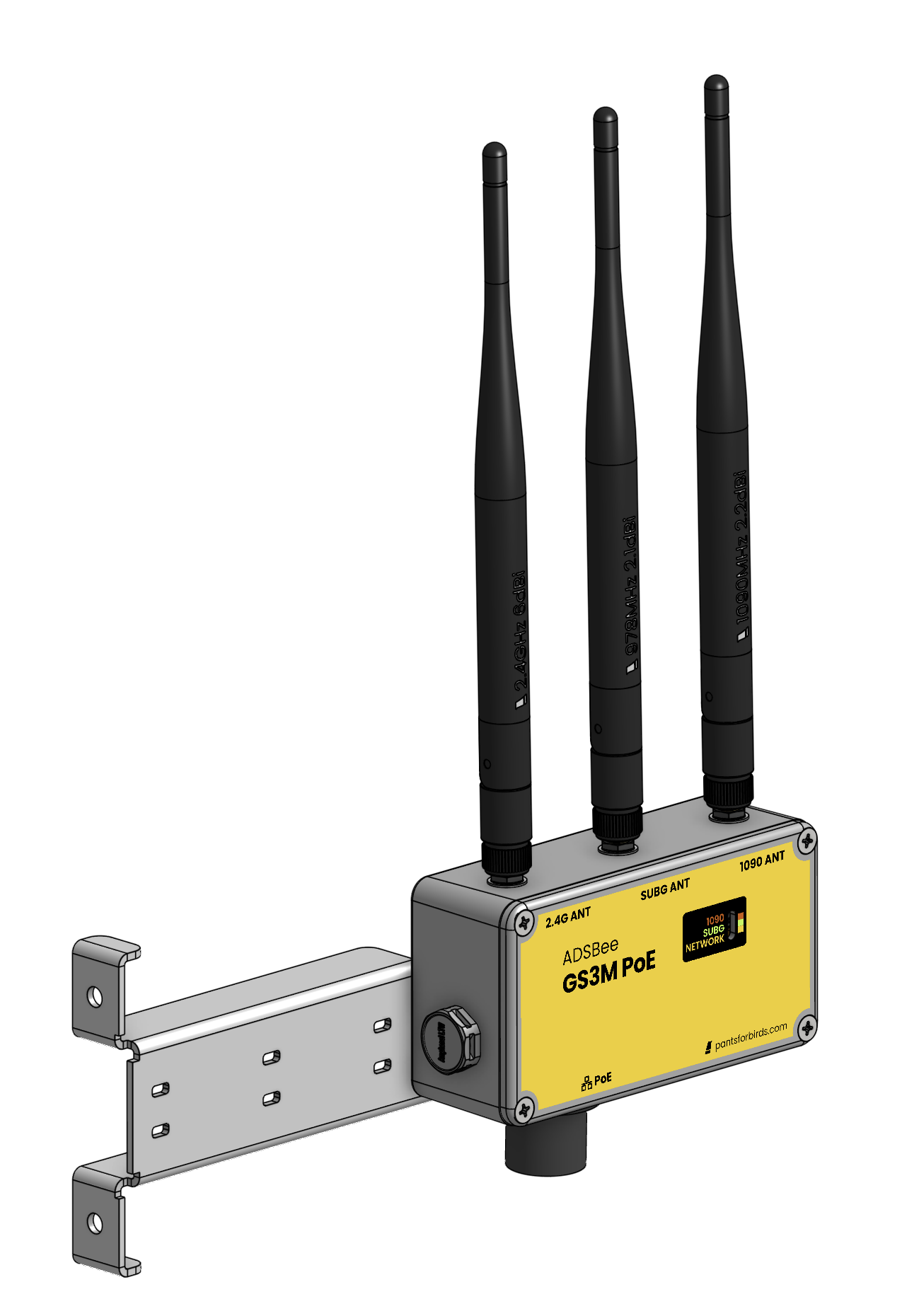

ADSBee GS3M PoE includes 3x IP67 antennas and a custom sheet metal mounting bracket suitable for mounting the GS3M PoE to a variety of horizontal or vertical surfaces or supports, using the included adjustable pipe clamps or customer-provided M5 mounting hardware.

The data and power connection for the GS3M PoE utilizes a weatherproof CAT5 RJ45 bulkhead connector with a split cable gland and two-piece cable grip. This allows it to be installed onto standard outdoor rated CAT5 cable with an RJ45 connector. If the cable does not include a strain relief boot, it can be passed through the split cable gland and cord grip without the need for re-termination.

NOTE: GS3M PoE is in beta, and environmental ratings are subject to change pending testing and validation.

Remote ID In functionality is planned for a future firmware update. ADSBee GS3M PoE uses identical firmware to the ADSBee 1090U, and can be updated via USB (by opening the enclosure) or Ethernet.
